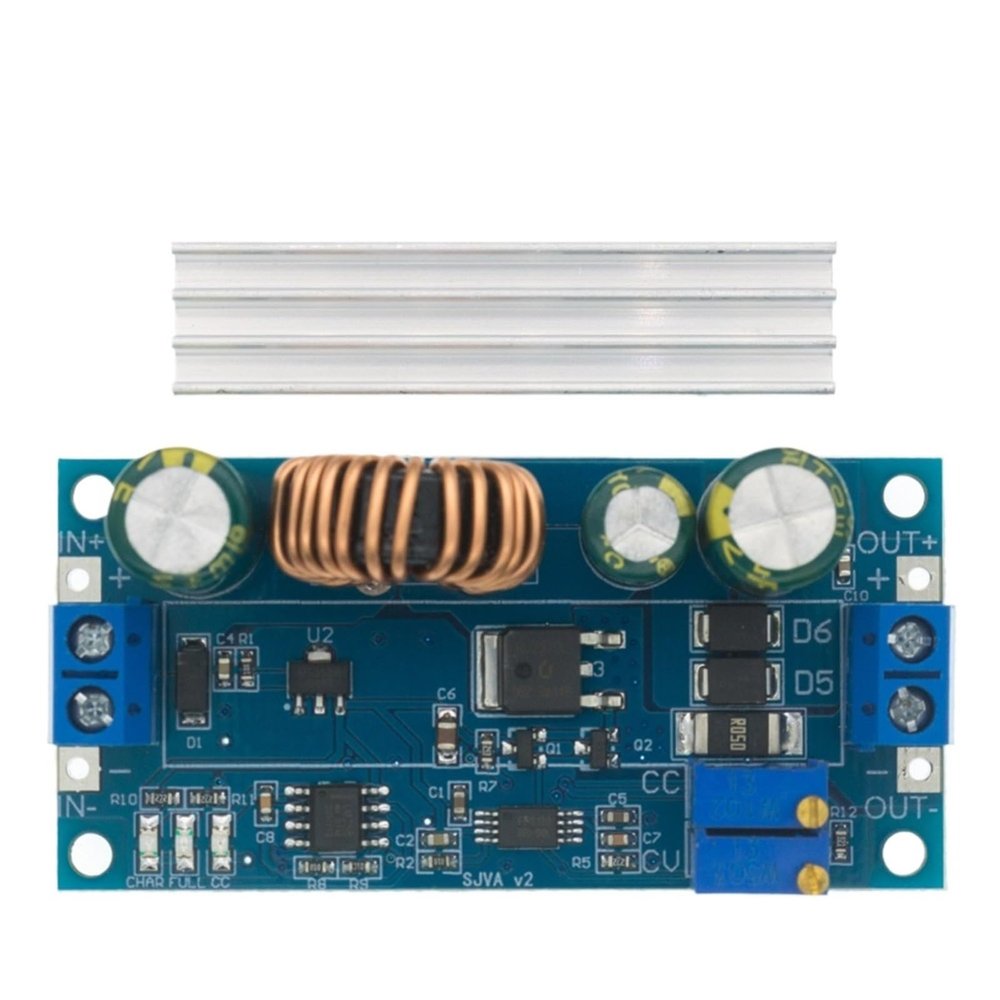

LYYNHG 10PCS CC CV Adjustable 3A 35W DC 5-30V to DC 0.5-30V Step Up Down Buck Boost Converter Power Supply Module Voltage Regulator XY-SJVA

Description

• Landscape-lighting-transformers

landscape-lighting-transformers
Product parameters:
Input voltage: 5-30V
Output voltage: 0.5-30V
Output current: to long-term stability in the 3A, to strengthen the heat can reach 4A
Output power: natural cooling 35W, strengthen the heat 60W
Conversion efficiency: 88% or so
Short circuit protection: Yes
Operating frequency: 180KHZ
Size: Length * Width * Height 65 * 32 * 21mm
Weight: 30g
Module use:
1. Used as a general step-up and step-down module with overcurrent protection capability
Instructions:
(1) Adjust the CV constant voltage potentiometer so that the output voltage reaches the value you want.
(2) with the multimeter 10A current measurement output short-circuit current (directly to the two test leads can be connected to the output), while adjusting the CC constant current potentiometer so that the output current to achieve a predetermined over-current protection value. (Such as multimeter shows the current value is 2A, then you use the module when the maximum current can only be 2A, the current to 2A when the red constant voltage constant current indicator light, otherwise the indicator light off)
Note: When used in this state, because the output has 0.05 ohm current sampling resistor, connected to the load will be 0 ~ 0.3V voltage drop, this is a normal phenomenon! This voltage drop is not pulled down by your load, but is reduced to the sampling resistor.
2. Used as a battery charger
Non-constant current function of the module can not be used to charge the battery, due to the power consumption of the battery and the charger is very large, resulting in charging current is too large, resulting in battery damage, so the beginning of the battery to use constant Flow charge, when the charge to a certain extent, when the automatic switching back to constant voltage charging.
Instructions:
(1) to determine the rechargeable battery you need to recharge the battery voltage and charge cur
